Oil & Gas
ChemTecUSA provides robust, corrosion-resistant metal parts—shims, meshes, and critical valve discs—tailored for demanding oil & gas applications.
Precision Encoder Discs Manufactured for Oil & Gas Operations
ChemTecUSA encoder discs are engineered for precision performance and extended reliability within the complex inner workings of modern oil and gas operations.
Oil and gas processing today relies on advanced equipment that yields precise control and monitoring of flow rates, pressure and fluid levels, among many other parameters. That means maintaining extremely accurate positional alignment, speed, and stability of components within high-pressure, vibration-prone, and potentially corrosive environments.
Even slight miscalibration significantly reduces service life, raises the risk of leaks, and introduces performance drift across the entire system. Precision encoder discs are one of the crucial keys for maintaining calibration, control, and long-term reliability.
Oil and gas operations requiring the best encoders in the business have turned to ChemTecUSA since 1976.
Ensuring Accurate Encoder Performance in Oil and Gas Processing

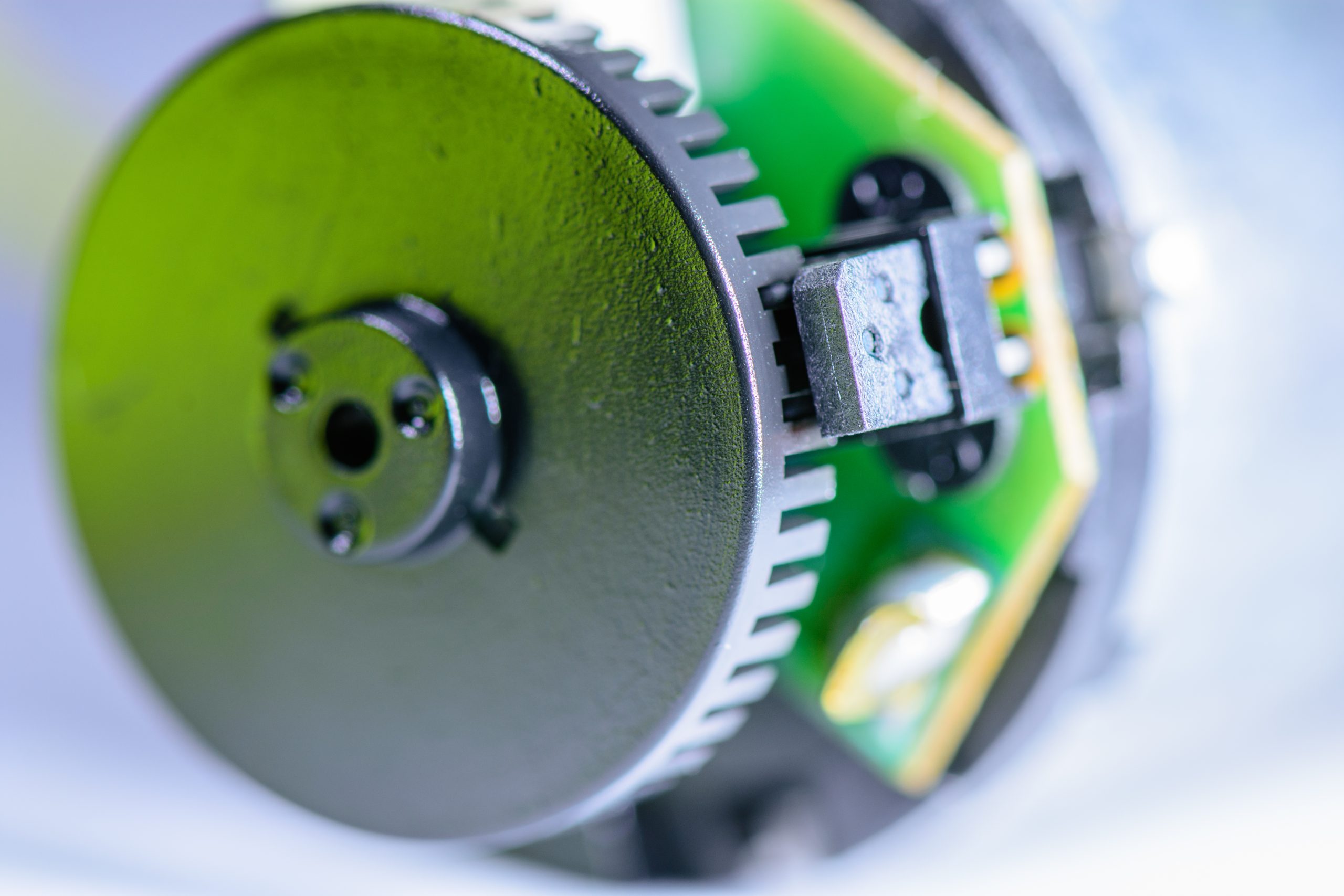

Encoder discs are position-sensing components within control systems that provide real-time feedback on mechanical motion and rotational speed. From top-drive systems that rotate the drill string to pump jacks that extract crude oil from wells, encoders measure position, velocity, and torque—data that operators rely on to maintain safe, efficient operations.
Yet encoder failures represent one of the most costly sources of unplanned downtime in the industry. A single encoder malfunction can halt drilling operations or prevent production monitoring, translating to thousands of dollars in lost revenue per hour.
The harsh downhole environment with extreme temperatures, corrosive mud, high vibration, and salt water exposure demands encoder discs manufactured to the highest precision standards from quality materials that last.
- Inconel® and nickel-based superalloys: Extreme corrosion and heat resistance for downhole and subsea applications
- Stainless steel (300/400 series): Cost-effective corrosion resistance for general downhole components
- Hastelloy® and other specialty alloys: For environments with hydrogen sulfide, CO₂, and other aggressive chemicals
ChemTecUSA specializes in photochemical etching / machining (PCM)—a precision process that produces encoder discs specifically engineered for oil and gas demanding environments. Our burr-free, stress-free components deliver the reliability and accuracy your operations depend on.

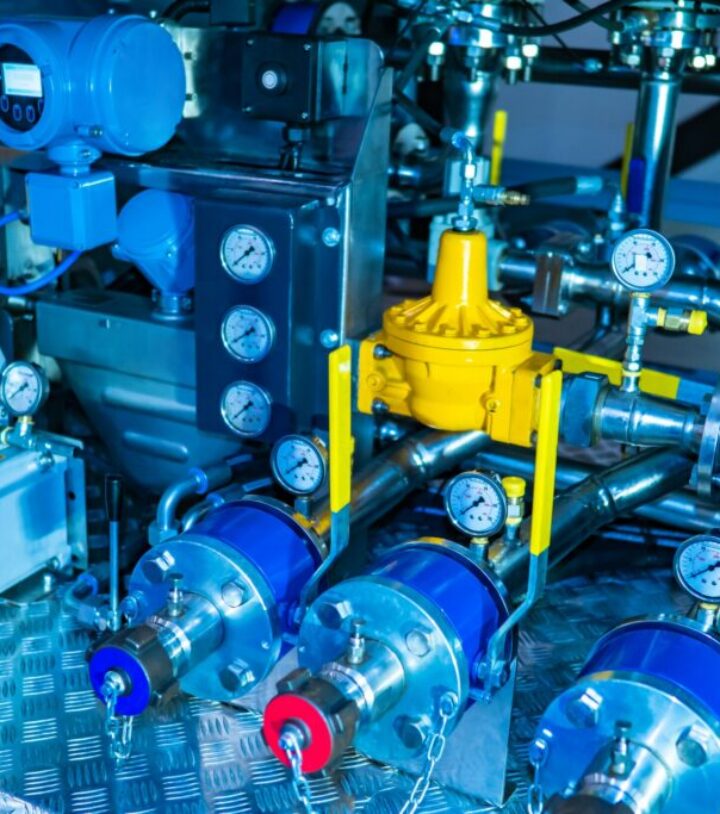

Diaphragms for Pressure and Flow Sensors
Downhole and surface-mounted sensors require precision diaphragms that convert fluid pressure into mechanical motion for measurement or control. These diaphragms must withstand extreme pressures, corrosive fluids, and millions of deflection cycles without rupture, fatigue, or calibration drift.
Our photochemical machining process produces diaphragms with precisely-controlled thickness that ensures repeatable pressure response, along with extended fatigue life and compatibility with complex designs.
Spacer and Calibration Shims
Precision mechanical assemblies in downhole tools, mud motors, pump jacks, and subsea equipment require exacting dimensional control. Small variations in component spacing can compromise operational performance, sensor accuracy, or equipment reliability. Spacers and shims must maintain precise dimensions across thousands of operational hours under extreme conditions.
Our precision etching produces shims and spacers with tight dimensional tolerances, uniform thickness, and burr-free edges.
Flow Restrictors
Oil and gas production systems require precise flow control for safety, efficiency, and production optimization. Flow restrictors limit flow rates to protect equipment, control backpressure, or ensure proper operational parameters. Traditional drilled orifices produce turbulence, erosion, and unreliable flow control. Precisely-engineered flow restrictors deliver repeatable, reliable performance.
Our photochemical machining delivers flow restrictors with tight tolerances, burr-free apertures, and precise orifice geometry, including complex multi-stage designs.
Screens, Filters, and Perforated Plates
Oil and gas operations generate solids contamination from drilling cuttings, formation fines, corrosion products, and equipment wear. Filtration systems protect equipment by removing these contaminants, but conventional stamped or drilled screens often fail due to clogging, blinding, or structural collapse under high differential pressure. Precision-etched screens deliver uniform perforation patterns that resist clogging and maintain structural integrity.
Our photochemical machining produces screens and perforated plates with precise thickness control, burr-free edges, and uniform hole patterns, including complex multi-section designs.
Nameplates and Identification Tags
Oil and gas equipment operates in remote, harsh environments where equipment identification must withstand extreme conditions while remaining legible for years. Nameplates must resist corrosion, mechanical damage, temperature cycling, and UV degradation. Industrial printing on traditional materials often fails in these environments. Etched metal nameplates provide permanent, durable identification.
Our integrated PCM and industrial printing services deliver nameplates with precision etching for fully customizable designs.
An Experienced Manufacturer for Petrochemical Providers
ChemTecUSA offers unique manufacturing experience supporting a broad range of oil and gas equipment applications.
Top-Drive Systems
Modern top-drives control rotational speed and torque applied to the drill string. Magnetic or optical encoder discs mounted to the drive shaft provide feedback that prevents bit stalling, optimizes weight-on-bit, and ensures proper drilling parameters.
Pump Jacks and Artificial Lift
Hundreds of thousands of pump jacks across North America require run-status monitoring. Encoder discs enable continuous feedback on pump jack operation—detecting starts, stops, and swings to alert operators to production anomalies before they escalate into costly failures.
Downhole Measurement Tools (MWD/LWD)
Measurement While Drilling and Logging While Drilling systems collect real-time formation data while drilling. Precision encoders within these tools provide directional and positional data that guides drilling to target zones.
Subsea Equipment and Riser Systems
Offshore equipment faces saltwater corrosion, high pressure, and temperature cycling. Encoder discs manufactured from corrosion-resistant alloys with tight tolerances are essential for reliable subsea production monitoring.
Quality and Process Control
ChemTecUSA operates under ISO 9001:2015 quality management systems. Each shim pack is produced with controlled etch parameters, documented inspection, and material certification as required. Dimensional verification, surface evaluation, and traceability are built into every order.
CHEMTECUSA
Engineering Support
Our engineering team assists with material selection, thickness strategy, and pattern design to help you achieve reliable alignment and simplified field installation. We accept CAD files in DXF, DWG, and other standard formats, as well as PDF drawings for quoting and manufacturability review.
Start Your Project
ChemTecUSA delivers shim packs that support safe, consistent operation in demanding oil and gas environments. Contact our team at [email protected] to discuss your alignment requirements or request a quotation for production volumes or prototype needs.
