Nickel Photochemical Etching
ChemTecUSA specializes in precision nickel photochemical etching for aerospace, medical device, electronics, and industrial applications. Our Rhode Island facility produces complex, burr-free nickel components with tolerances to ±0.0005 inches, from prototype quantities through production volumes.
Photochemical Etching Process
Nickel photochemical etching utilizes controlled chemical dissolution to remove material without the need for mechanical force or heat, thereby eliminating the stress, distortion, and tooling costs associated with conventional machining. Nickel’s strength, corrosion resistance, and fine-grained structure enable the production of complex, burr-free components with intricate features, such as thin walls, microapertures, and fine slots, that other methods cannot achieve.
Material Properties and Performance
Corrosion Resistance
Nickel offers excellent resistance to oxidation and chemical attack in environments that involve moisture, solvents, and industrial atmospheres. The photochemical etching process maintains these inherent material properties throughout fabrication.
Dimensional Stability
Chemical material removal can preserve flatness and dimensional accuracy across the entire part. This stability is essential for components such as diaphragms, EMI/RFI shielding, lead frames, and sensor elements where precise tolerances must be maintained.
Surface Quality
Etched nickel surfaces are smooth and burr-free with uniform etch depth across the sheet. This consistency supports subsequent operations, including plating, bonding, welding, and coating applications. Our team offers matte, polished, and plated finishes so you can match your part’s performance and visual requirements.
Technical Specifications
Applications
Aerospace and Defense
EMI/RFI shielding, precision filters, sensor grids, micro-filtration components, calibration shims
Electronics and Telecommunications
Lead frames, electrical connectors, contact springs, heat sinks, mesh screens, battery contacts
Medical Devices
Surgical instruments, diagnostic components, implantable device elements, precision apertures, micro-filters
Industrial and Instrumentation
Flow control components, encoder discs, spring contacts, custom gaskets, chemically resistant parts
Process Advantages
Nickel photochemical etching delivers a distinct manufacturing edge by combining photolithography with chemical precision to produce detailed, stress-free components ideal for advanced applications. The benefits of this process can be seen across multiple performance categories:
Geometric Complexity
Produces intricate features, including thin walls, micro-apertures, fine slots, and complex patterns that are not achievable through conventional methods.
Material Integrity
No mechanical stress, work hardening, or heat-affected zones. Material properties remain unchanged throughout the process.
Production Flexibility
Consistent process from prototype through production volumes—no retooling required for volume scaling.
Edge Quality
Burr-free edges eliminate secondary deburring operations. Clean geometry suitable for direct assembly or post-processing.
Two-Sided Features
Capability for registered patterns on both sides of the material in a single process cycle.
Post-Processing Options
Etched nickel components accommodate various finishing operations:
- Electroplating (gold, tin, silver, copper)
- Passivation treatments
- Custom coatings
Quality Systems

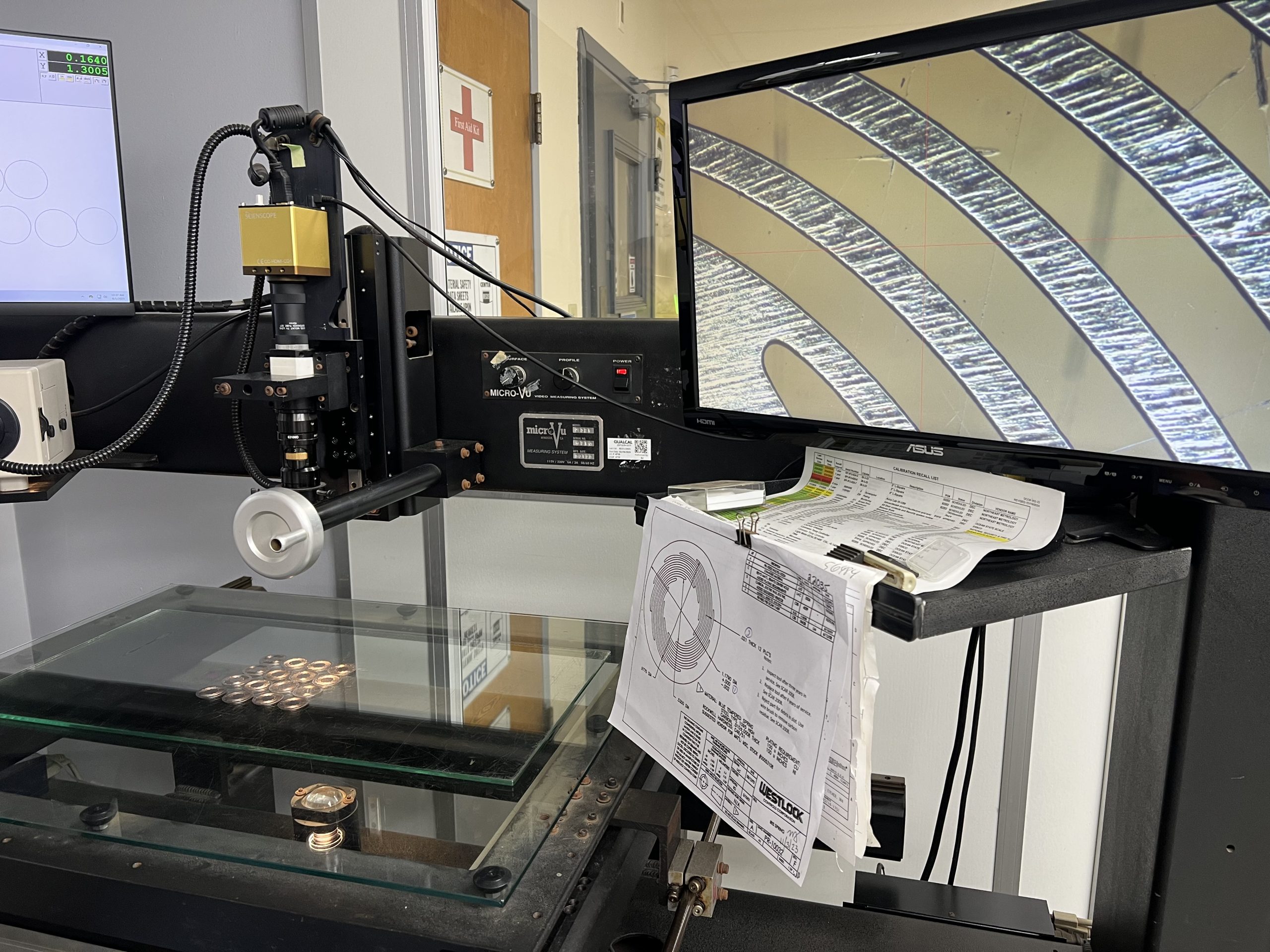

ChemTecUSA operates under ISO 9001:2015 and AS9100D quality management systems. All components receive dimensional verification and material certification. First article inspection reports are provided as required.
Materials Processed
- Pure nickel (Nickel 200, Nickel 201)
- Nickel alloys (consult for specific alloy requirements)
Working with ChemTecUSA
Our engineering team offers technical consultation on design optimization, material selection, and manufacturability to help you maximize the benefits of nickel photochemical etching. We accept CAD files in DXF, DWG, and standard formats, as well as PDF drawings.
Project volumes range from prototype quantities through production runs. Contact our team to discuss your specific application requirements and receive a detailed quotation.
