Carbon Steel Components
ChemTecUSA’s photochemical etching of carbon steel offers a reliable method for producing durable components with intricate geometries. The process combines chemical precision with photolithographic control to create complex parts that are free from burrs, distortion, and tool wear. ChemTecUSA etches low-, medium-, and high-carbon steels with consistent quality across prototype development and full-scale production.

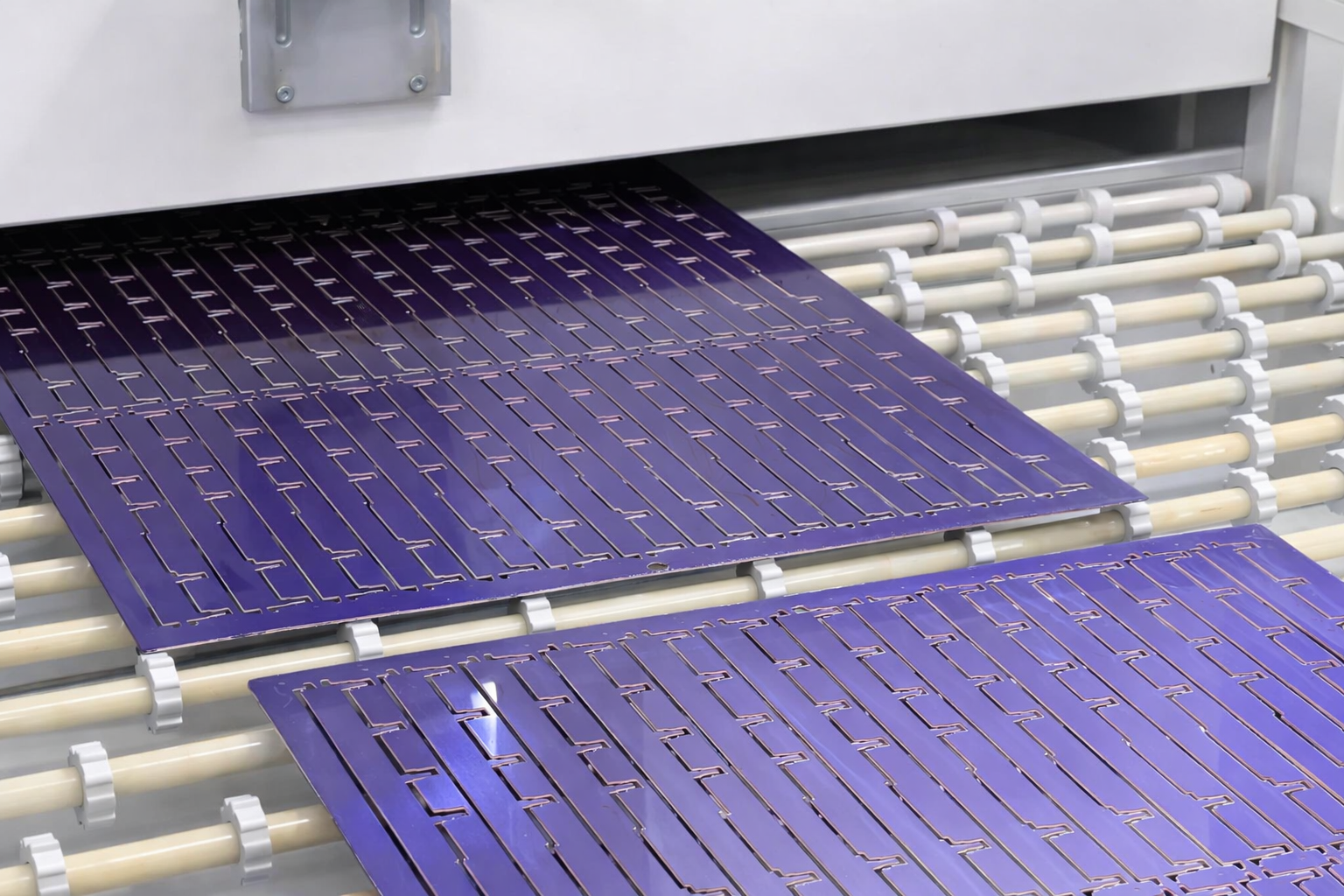

The Carbon Steel Etching Process
The process begins by applying photoresist to carbon steel sheets, followed by exposure to UV light through precision masks. Chemical etchants remove unprotected areas, allowing you to create your exact design—the result: complex parts with zero mechanical stress or heat-affected zones.
Why Choose Etching for Carbon Steel Components?
Carbon steel is valued for its strength, machinability, and cost-effectiveness. When precision and repeatability matter, the carbon steel etching process offers significant advantages over mechanical or laser methods. ChemTecUSA chemical etching removes material cleanly without inducing mechanical stress, eliminating warping or microcracking that often occurs during stamping or laser cutting.
This process allows for tight tolerances and complex shapes (slots, grids, shims, springs, and filters) that are difficult to achieve through traditional manufacturing. Our team offers matte, polished, and plated finishes so you can match your part’s performance and visual requirements. Engineers gain the freedom to design unique features with smooth edges and uniform thickness throughout the component.
Material Properties of Carbon Steel
Strength & Durability
Carbon steel provides high tensile strength and wear resistance, making it suitable for parts that must endure mechanical or thermal stress. ChemTecUSA’s etching process preserves these structural characteristics by avoiding heat-affected zones.
Dimensional Stability
Unlike stamping or machining, chemically etched carbon steel removes material through controlled reaction. The result is a flat, dimensionally stable part that maintains tight tolerances across large sheets and repeated production cycles.
Surface Finish
Etched carbon steel surfaces exhibit a uniform, burr-free finish that can be further enhanced by treatment (such as plating, painting, or coating) for improved corrosion resistance or enhanced appearance.
Carbon Steel Grades Processed
ChemTecUSA etches a range of low- to high-carbon steels commonly used for shims, springs, and structural components. Specific grades and hardness levels are selected according to customer drawings and material specifications.
Need help selecting the right steel grade for your application? Contact our engineering team.
ChemTecUSA Carbon Steel Etching Capabilities
At ChemTecUSA’s Rhode Island facility, photochemical etching carbon steel is controlled with the same precision applied to all materials including nickel, stainless steel, and copper alloys.
Automotive & Transportation
Shims, washers, gaskets, speaker grills, and structural spacers
Aerospace & Defense
Precision filters, reinforcement plates, and sensor brackets

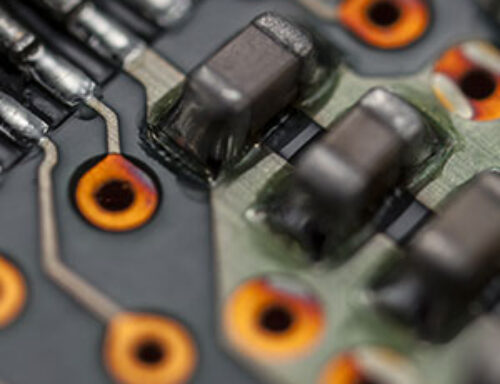

Electronics
Mounting plates, shielding frames, and connector supports
Industrial Equipment
Springs, locking tabs, and wear-resistant parts
Advantages of Etching Carbon Steel with ChemTecUSA
- Burr-Free Edges: Smooth profiles eliminate post-processing
- No Mechanical Stress: Flatness and structural integrity maintained
- Consistent Tolerances: ±0.0005″ achievable across full sheets
- Design Flexibility: Quick and low-cost tooling changes for rapid design updates.
- Fast Turnaround: Quick prototyping and scaling for production volumes
- Secondary Finishing Options: Compatible with plating, painting, or coating
- ISO 9001:2015 Certified | ITAR Compliant | RoHS Compliant
Get Started with ChemTecUSA
When your project demands precision, strength, and reliability, etching carbon steel with ChemTecUSA ensures superior results. Our process combines decades of expertise with state-of-the-art equipment to produce consistent, high-quality components ready for performance-critical applications.
Contact ChemTecUSA today to request a quote, discuss your part specifications, or learn how our etching capabilities can streamline your production workflow.
